Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency

  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
Lugar de origem China
Marca Trancar Industries
Certificação CE/ISO
Número do modelo TCM-D
Quantidade de ordem mínima 1 conjunto
Preço USD 9000-5000 Dollar per set
Detalhes da embalagem Caixa de madeira compensada/caixas de cartão
Tempo de entrega 35 dias de trabalho
Termos de pagamento L/C,D/A,D/P,T/T,Western Union
Habilidade da fonte 20 séries por mês

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Nome do produto máquina de polimento semiautomática de cabeça de prato Dimensão 3500x1600x3050 mm
Peso 2500 kg Tensão 380V 400V 415V etc. 50Hz/60Hz
Opção de cor Azul/amarelo/vermelho/cinzento Uso Limpeza da superfície do aço, remoção da ferrugem, obtenção da superfície do espelho
Doença 100% novo Sistema de controle Máquinas e aparelhos de construção
Eficiência de lustro 8-12 m2 por hora Garantia 18 meses
Serviço pós-venda Apoio técnico por vídeo/Apoio online/Engenheiros no estrangeiro Fornecer ODM & OEM
Destacar

3500x1600x3050mm Dished End Polishing Machine

,

2500 kg Semi-automatic Polishing Machine

,

8-12m2 per Hour Tank Head Polishing Machine
Deixe um recado
Descrição de produto

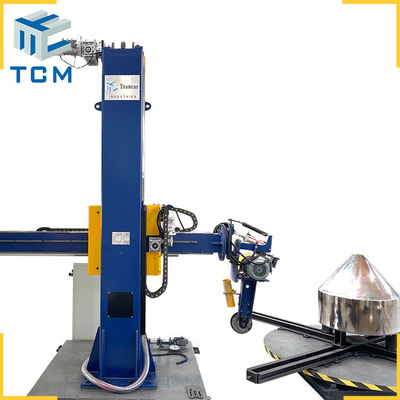

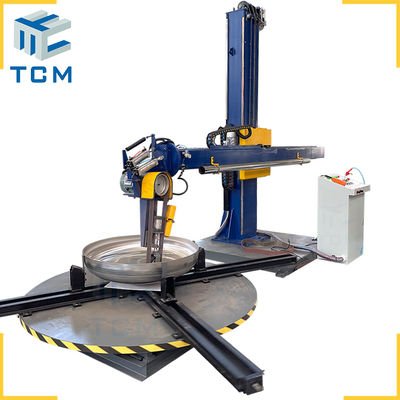

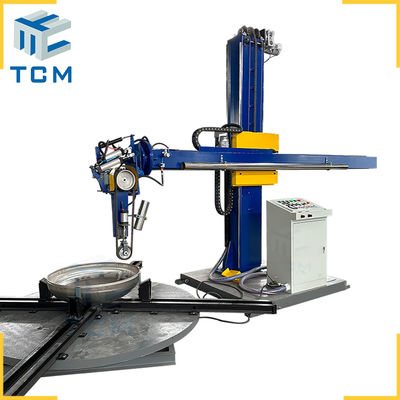

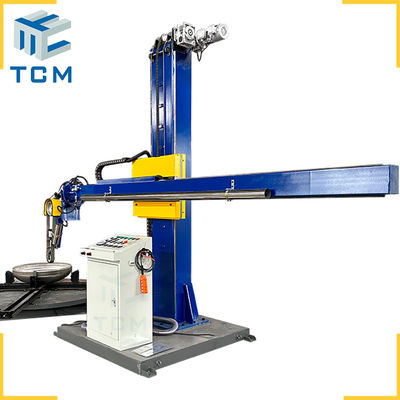

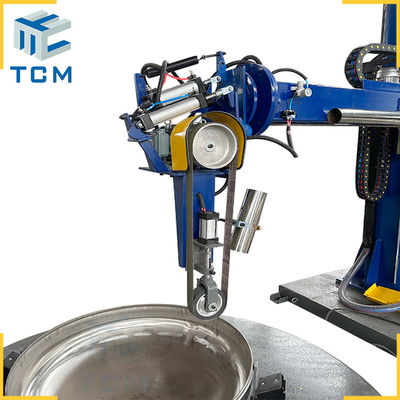

Semi-automatic Polishing Machine for Dish Head End
TCM-D column and boom manipulator automatic surface grinding machine is designed for steel metal tank ends, dish heads, tank caps/bottoms/cones inner and outer surface polishing and buffing.
This model is primarily used for surface polishing of stainless steel, metal, aluminum, and copper dished ends, tank heads, and cylinder heads. It can also be used for vertical tank surface grinding.
The TCM-D automatic polishing machine is suitable for various standard head polishing applications including conical head polishing, spherical head surface polishing, dish head polishing, special heads polishing, and stainless steel oval head inside/outside surface grinding. It's widely used in pharmaceutical, medical, food & beverage, water purification, pressure vessel, cosmetic, wastewater treatment, semiconductor, and photovoltaic industries.
Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 0
Technical Specifications
Parameter Details
Available Polishing Workpiece Size Inside & outside diameter: 450~5000mm
Turntable Max Loading Capacity 1 Ton / 2 Ton /5 Ton / 10 Ton (option or custom design 15 Ton, 20 Ton)
Polishing Precision Surface roughness(Ra) ≤0.25μm
Production Efficiency 6~12 m²/hour
Total Dimension Machine: 3500×1600×3080mm
Column: 300×400×8mm
Beam: 150×200×6mm
Input Total Power 12 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Color Grey/Green/Blue/Red/Yellow (Custom design available)
Machine Weight 2250kg
Suitable Polishing Material Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc)
Packaging and Delivery
  • Plywood case + PE Film + Carton protection
  • Custom packaging available based on order requirements
Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 1 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 2 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 3 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 4
Trancar Automatic Polishing Machine in Client's Workshop
Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 5
