Steel Sheet metal work piece sanding deburring edge rounding machine
| Lugar de origem | China |
|---|---|
| Marca | Trancar Industries |
| Certificação | CE/ISO |
| Número do modelo | TCM-PM-S |
| Quantidade de ordem mínima | 1 conjunto |
| Preço | USD 5000-25000 Dollar per set |
| Detalhes da embalagem | Caixa de madeira compensada/caixas de cartão |
| Tempo de entrega | 45 dias de trabalho |
| Termos de pagamento | L/C,D/A,D/P,T/T,Western Union |
| Habilidade da fonte | 20 séries por mês |
Detalhes do produto
| Nome do produto | máquina de arredondamento de borda rebarbadora | Dimensões | 3700x2200x2200mm |
|---|---|---|---|
| peso | 2.800kg | Tensão | 380V 400V 415V etc. |
| Cor | Azul/vermelho/cinzento | Doença | 100% novo |
| Automação | PLC automático | Uso | corte a laser de peças, polir a superfície, desbarbar |
| Garantia | 18 meses | Fornecer | projete o serviço |
| Destacar | Steel sheet metal deburring machine,Sheet polishing machine with edge rounding,Metal sanding machine for work pieces |
||
Descrição de produto

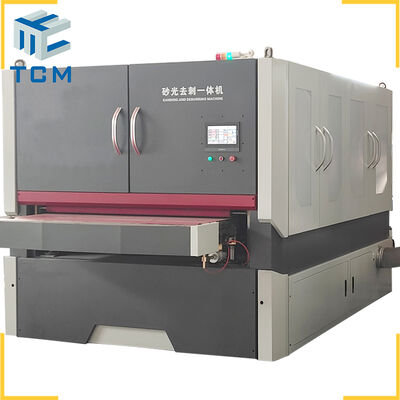

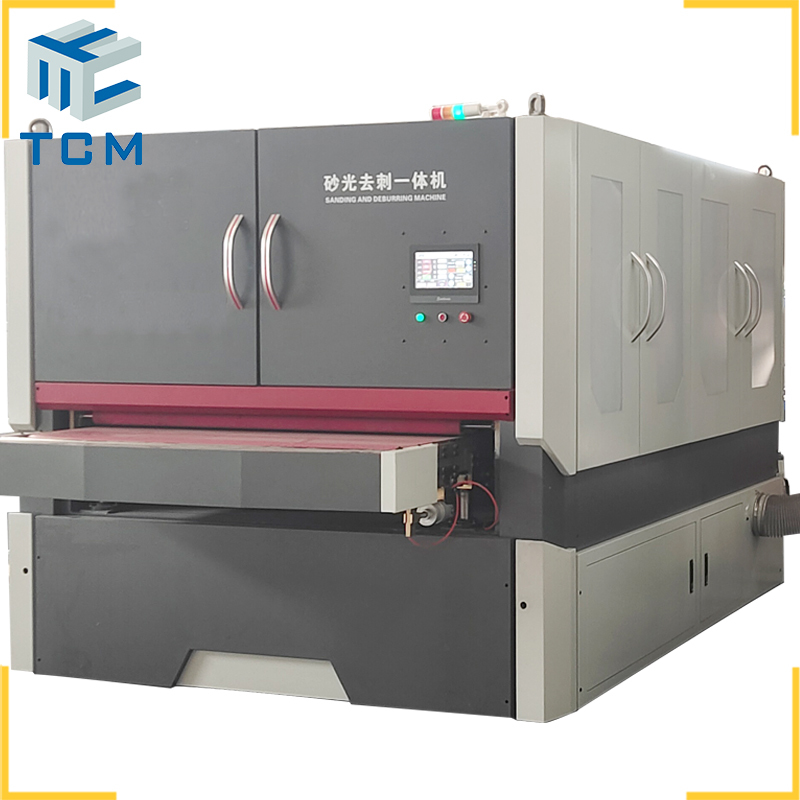

Steel Sheet metal work piece sanding deburring edge rounding machine
TCM -PM series Sanding & deburring machine is mainly used for steel pieces or sheet’s surface deburring, chamfering and fine surface finishing,such as sanding,brushing,workable for carbon steel plate, stainless steel plate, aluminum plate, copper plate and other plates.
Trancar Industries PLC sanding & deburring machine widely used for laser cutting parts’ surface finishing brushing and chamfering,removing steel metal sheet’s oxide layer, also for steel plate surface rust removing.

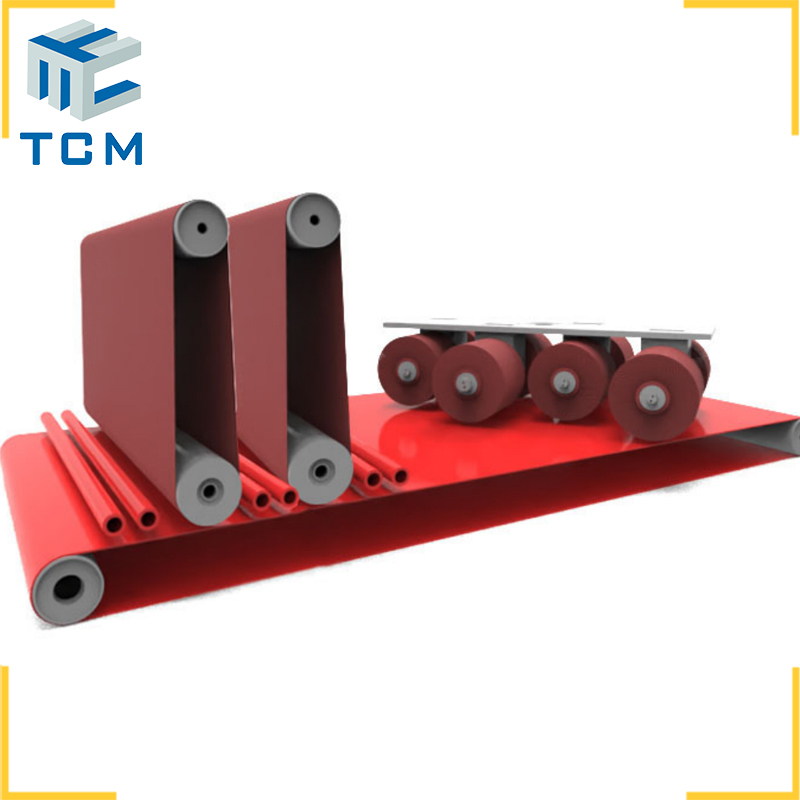

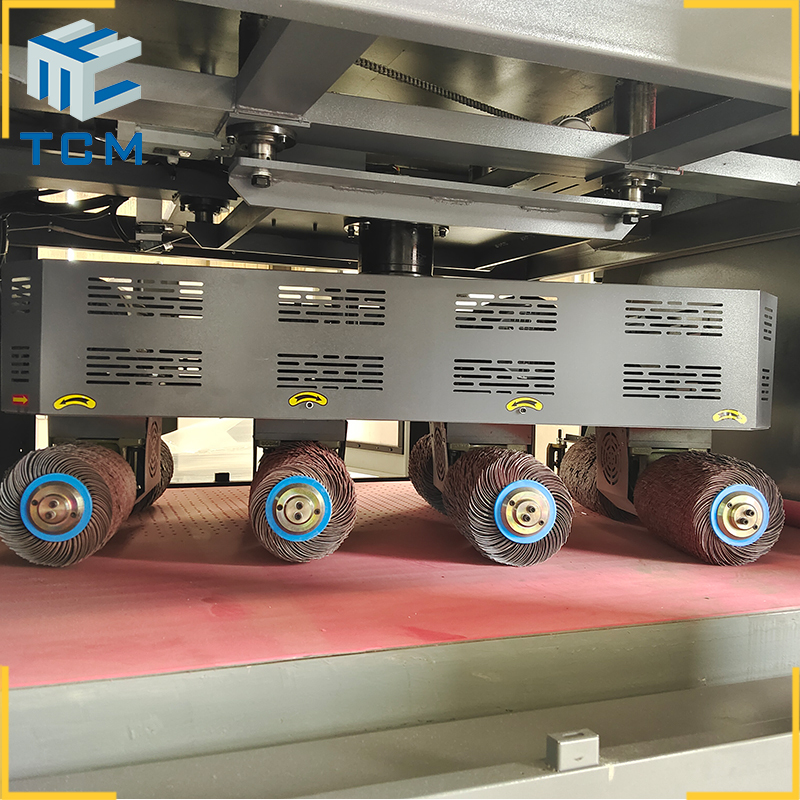

This type of mechanical equipment is composed of 2 sand belts and 4- 8 roller brushes and is mainly used for cleaning the burr produced by the metal sheet after cutting or stamping. In addition, it can also be used for rust removal and oxidation layer on the surface of sheet metal according to the situation; Stainless steel surface simple hairline. Aluminum plate, copper plate and zinc-coated steel surface treatment.
Metal sheet deburring edge rounding machine mainly parameter:
|
Max work width |
1500mm |
||
|
Fix method |
Magnetic + vacuum adsorption double system |
||
|
Work thickness |
1-100mm |
||
|
Conveying speed |
0-5m/min |
||
|
Sand belt 1 power |
30kw(hard rubber roller) |
Diameter of the rubber roller 1 |
210mm |
|
Sand belt 2 power |
30kw(soft rubber roller) |
Diameter of the rubber roller 2 |
210mm |
|
Feeding motor power |
5.5Kw |
Lifting motor power |
0.55Kw |
|
Roller brushes spindle speed |
0-1000r/min |
Roller brush alternating speed |
0-35r/min |
|
Vacuum adsorption |
15Kw 2900r |
||
|
Sanding belt specification |
1520*2200mm (The sand belt grits can be changed at will) |
||
|
Roller brush specification |
300-300-40mm |
||
|
Electric switch |
Chint/Schneider |
Bearing |
TR |
|
Solenoid valve |
JELPC |
||
|
Photoelectric sensors |
AUTONICS for belt guiding, motor brakes |
||
Trancar Industries metal sheet grinding & deburring machine and delivery:
Custom design service is available for metal sheet sanding & chamfering,contact Trancar Industries for more steel surface finishing solutions and equipments with best factory price.
